Original price was: 135,000৳ .112,000৳ Current price is: 112,000৳ .
| Models | 3K | 3.6K | 5K | 6K | 8K | 10K |
| Input DC (PV side) | ||||||
| Recommended max. PV array size | 6 kW | 7.2 kW | 10 kW | 12 kW | 16 kW | 20 kW |
| Max. usable PV input power | 4.8 kW | 5.76 kW | 8 kW | 9.6 kW | 12.8 kW | 16 kW |
| Max. input voltage | 500 V | |||||
| Rated voltage | 330 V | |||||
| Start-up voltage | 90 V | |||||
| MPPT voltage range | 90 – 435 V | |||||
| Max. input current | 16 A / 16 A | 32 A / 32 A | 42 A / 42 A | |||
| Max. short circuit current | 20 A / 20 A | 40 A / 40 A | 48 A / 48 A | |||
| MPPT number / Max. input strings number | 2 / 2 | 2 / 4 | ||||
| Battery | ||||||
| Battery type | Li-ion / Lead-acid | |||||
| Battery voltage range | 40 – 60 V | |||||
| Max. charge / discharge power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. charge / discharge current | 70 A | 80 A | 112 A | 135 A | 190 A | 208 A |
| Communication | CAN / RS485 | |||||
| Output AC (Grid side) | ||||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. apparent output power | 3 kVA | 3.6 kVA | 5 kVA | 6 kVA | 8 kVA | 10 kVA |
| Operation phase | L/N/PE | |||||
| Rated grid voltage | 220 V / 230 V | |||||
| Rated grid frequency | 50 Hz / 60 Hz | |||||
| Rated grid output current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A | 45.5 A / 43.5 A |
| Max. output current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A | 45.5 A / 43.5 A |
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | |||||
| THDi | < 3% | |||||
| Input AC (Grid side) | ||||||
| Input voltage range | 187 – 253 V | |||||
| Max. input current | 21 A | 25 A | 32 A | 40 A | 50 A | 65 A |
| Frequency range | 45 – 55 Hz / 55 – 65 Hz | |||||
| Output AC (Back-up) | ||||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. apparent output power | 2 times of rated power, 10 s | |||||
| Back-up switch time | < 10 ms | |||||
| Rated output voltage | L/N/PE, 220 V / 230 V | |||||
| Rated frequency | 50 Hz / 60 Hz | |||||
| Rated output current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A | 45.5 A / 43.5 A |
| Max. AC passthrough current | 35 A | 35 A | 40 A | 40 A | 50 A | 65 A |
| THDv (@linear load) | < 2% | |||||
| Input Generator | ||||||
| Max. input power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW | 10 kW |
| Max. input current | 13.7 A / 13.1 A | 16.4 A / 15.7 A | 22.8 A / 21.8 A | 27.3 A / 26.1 A | 36.4 A / 34.8 A | 45.5 A / 43.5 A |
| Rated input frequency | 50 Hz / 60 Hz | |||||
| Efficiency | ||||||
| Max. efficiency | 96.2% | |||||
| EU efficiency | 96.1% | |||||
| BAT charged by PV / AC max. efficiency | 95.3% / 93.9% | |||||
| BAT discharged to AC max. efficiency | 93.8% | |||||
| Protection | ||||||
| Ground fault monitoring | Yes | |||||
| DC reverse-polarity protection | Yes | |||||
| Integrated AFCI 2.0 | Optional | |||||
| Protection class / Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | |||||
| General Data | ||||||
| Dimensions (W × H × D) | 335 × 560 × 253 mm | |||||
| Weight | 23 kg | 23.5 kg | 24 kg | |||
| Topology | High frequency isolation (for battery) | |||||
| Operating ambient temperature range | -40 ~ +60°C | |||||
| Ingress protection | IP66 | |||||
| Noise emission (typical) | < 65 dB(A) | |||||
| Cooling concept | Natural cooling | Intelligent fan-cooling | ||||
| Max. operation altitude | 3000 m | |||||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21 | |||||
| Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | |||||
| Features | ||||||

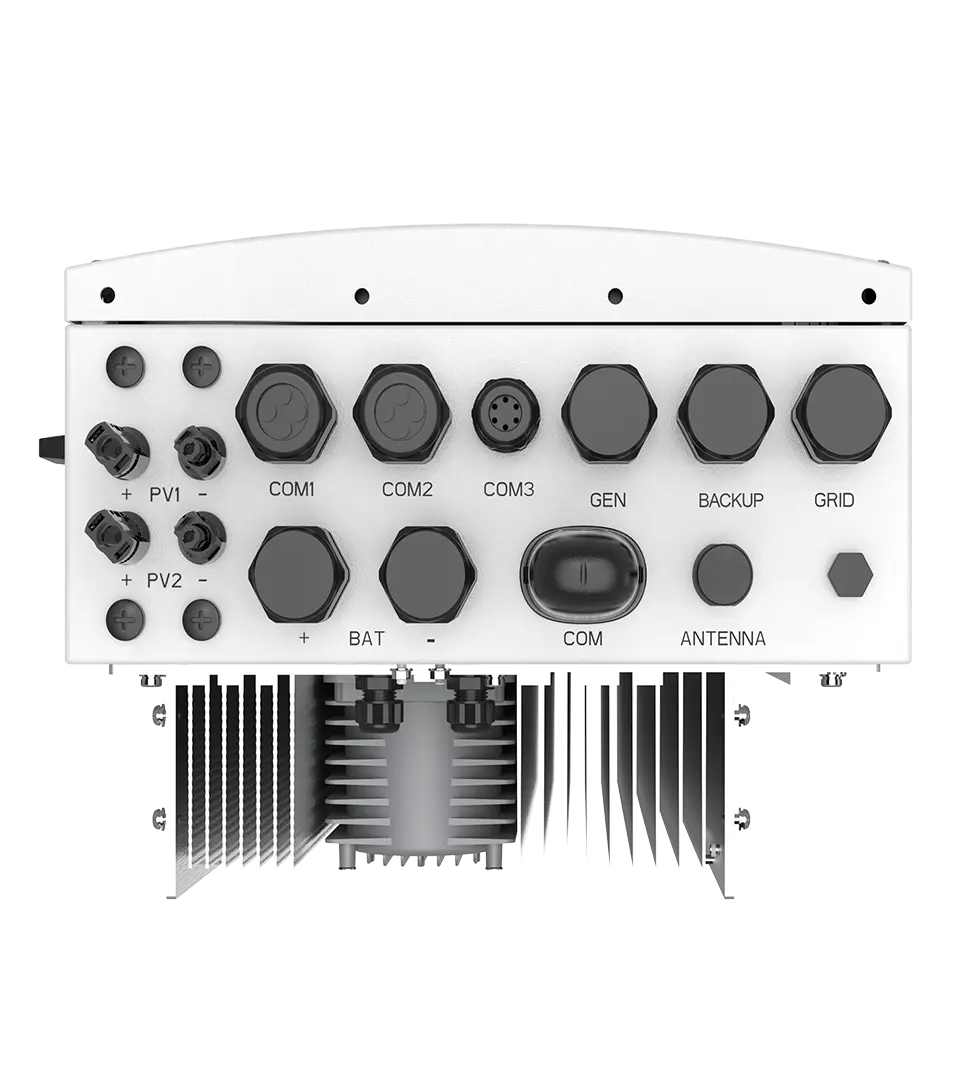

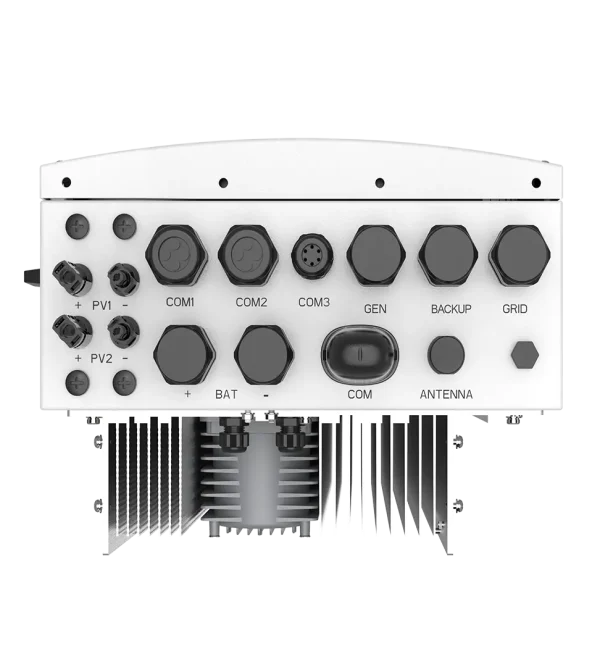

| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | |||||
| AC connection | Terminal Block | |||||
| Display | 7.0″ LCD display & Bluetooth + APP | |||||
| Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN | |||||
