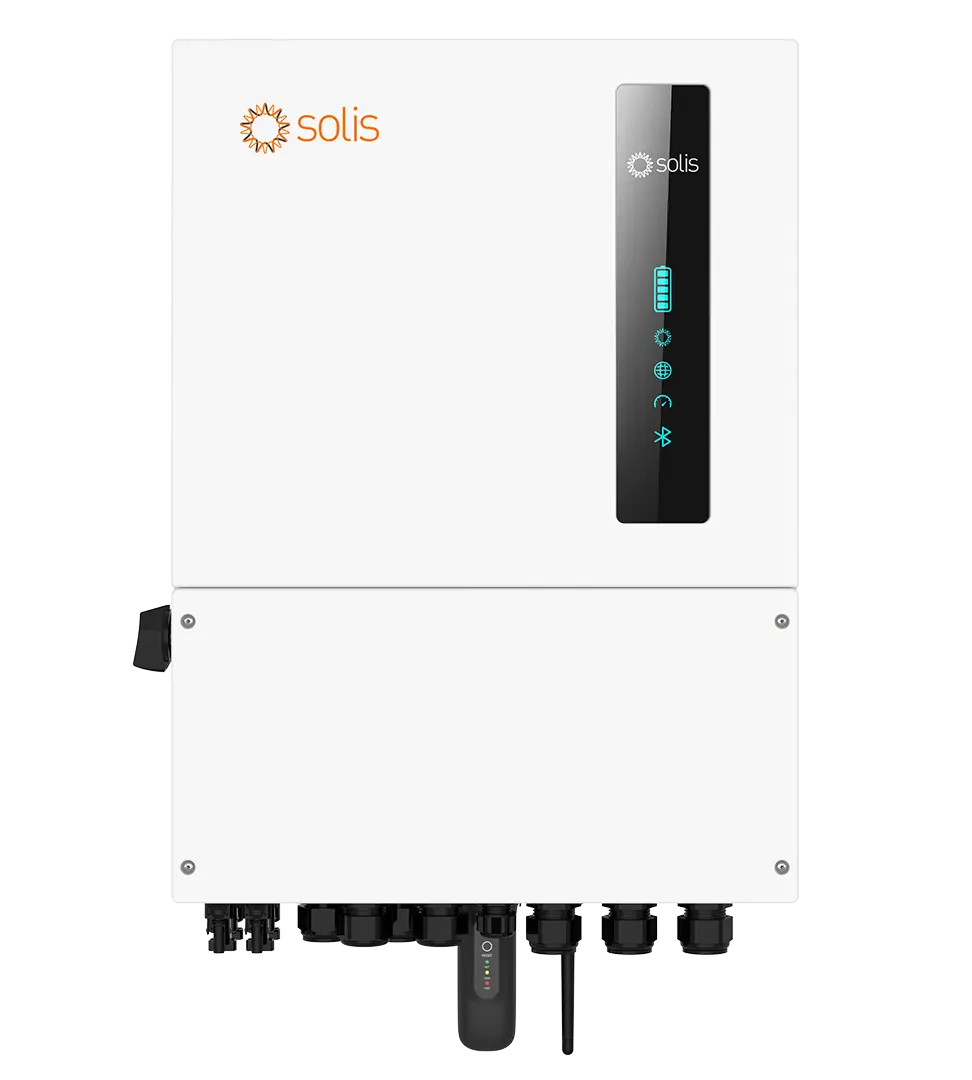

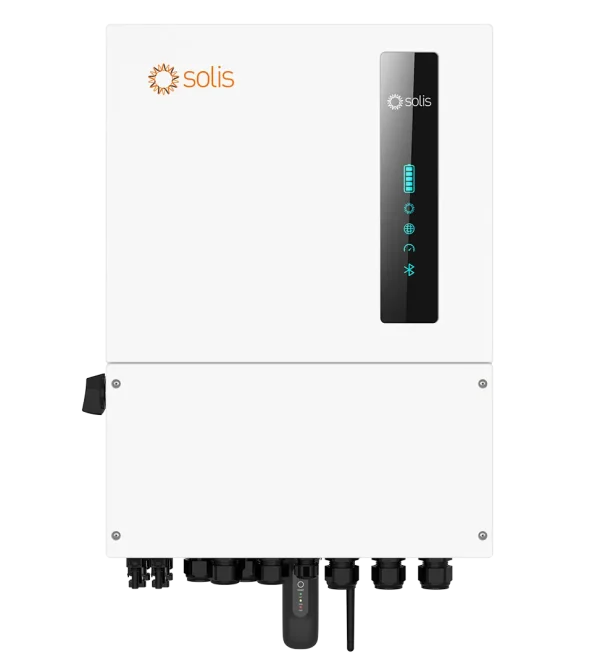

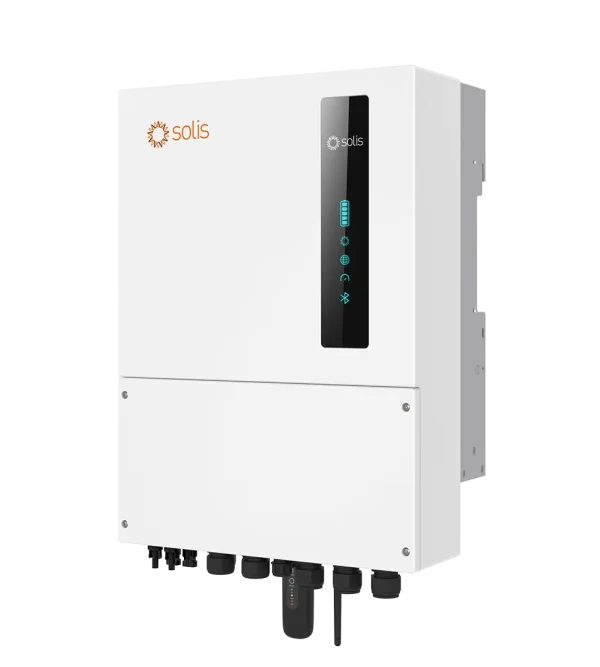

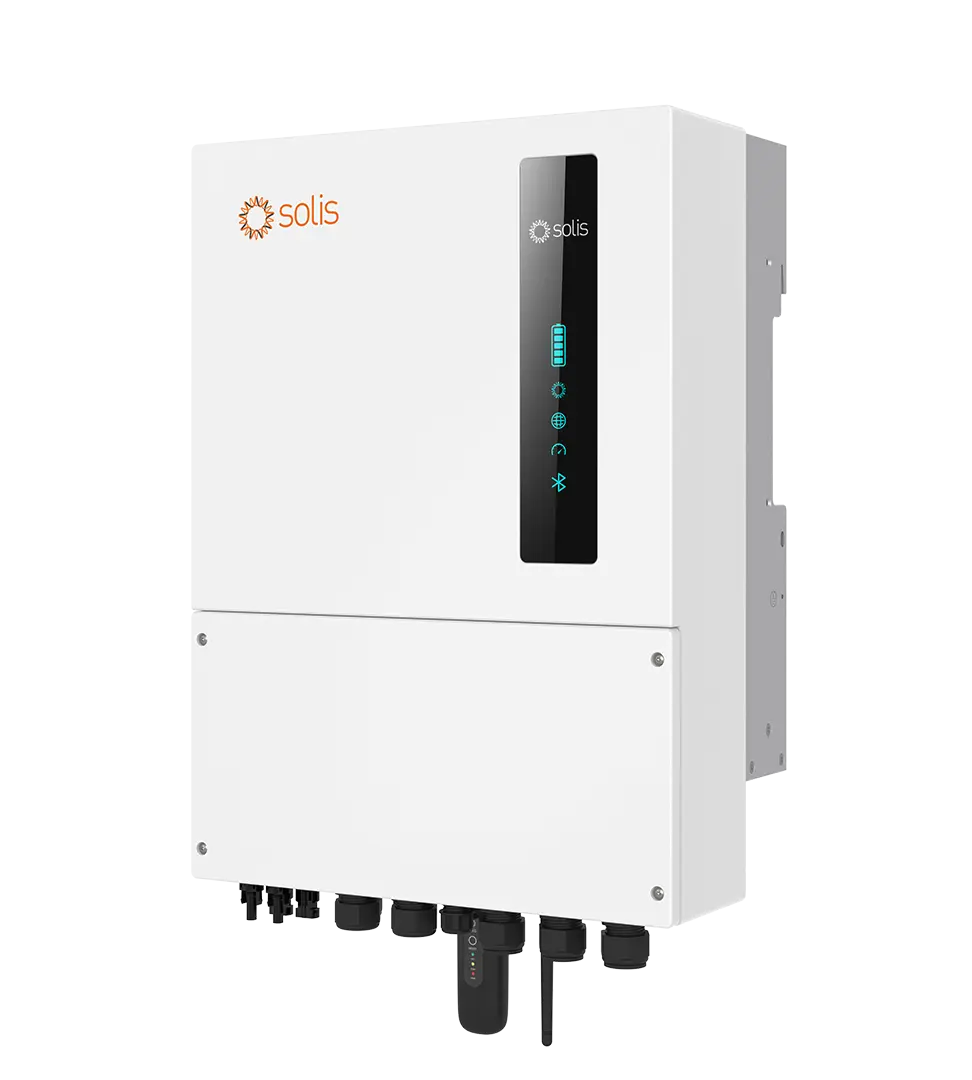

DATASHEET S6-EH1P(6.0)K-L-P
Solis Single Phase Low Voltage Energy Storage Inverters
| Models |
3K |
3.6K |
5K |
6K |
| Input DC (PV side) |
| Recommended max. PV array size |
6 kW |
7.2 kW |
10 kW |
12 kW |
| Max. usable PV input power |
4.8 kW |
5.76 kW |
8 kW |
9.6 kW |
| Max. input voltage |
600 V |
| Rated voltage |
330 V |
| Start-up voltage |
90 V |
| MPPT voltage range |
90 – 520 V |
| Max. input current |
16 A / 16 A |
| Max. short circuit current |
24 A / 24 A |
| MPPT number / Max. input strings number |
2 / 2 |
| Battery |
| Battery type |
Li-ion / Lead-acid |
| Battery voltage range |
40 – 60 V |
| Max. charge / discharge power |
3 kW |
3.6 kW |
5 kW |
6 kW |
| Max. charge / discharge current |
70 A |
80 A |
112 A |
135 A |
| Communication |
CAN / RS485 |
| Output AC (Grid side) |
| Rated output power |
3 kW |
3.6 kW |
5 kW |
6 kW |
| Max. apparent output power |
3.3 kVA |
4 kVA |
5.5 kVA |
6.6 kVA |
| Operation phase |
1/N/PE |
| Rated grid voltage |
220 V / 230 V |
| Rated grid frequency |
50 Hz / 60 Hz |
| Rated grid output current |
13.6 A / 13.0 A |
16.4 A / 15.7 A |
22.7 A / 21.7 A |
27.3 A / 26.1 A |
| Max. output current |
15 A |
20 A |
25 A |
30 A |
| Power factor |
> 0.99 (0.8 leading – 0.8 lagging) |
| THDi |
< 2% |
| Input AC (Grid side) |
| Input voltage range |
187 – 253 V |
| Max. input current |
20 A |
25 A |
32 A |
40 A |
| Frequency range |
45 – 55 Hz / 55 – 65 Hz |
| Output AC (Back-up) |
| Rated output power |
3 kW |
3.6 kW |
5 kW |
6 kW |
| Max. apparent output power |
2 times of rated power, 10 s |
| Back-up switch time |
< 4 ms |
| Rated output voltage |
1/N/PE, 220 V / 230 V |
| Rated frequency |
50 Hz / 60 Hz |
| Rated output current |
13.6 A / 13.0 A |
16.4 A / 15.7 A |
22.7 A / 21.7 A |
27.3 A / 26.1 A |
| Max. output current |
15 A |
20 A |
25 A |
30 A |
| Max. AC passthrough current |
35 A |
40 A |
| THDv (@linear load) |
< 2% |
| Efficiency |
| Max. efficiency |
> 96.9% |
| EU efficiency |
> 96.5% |
| Protection |
| DC reverse-polarity protection |
Yes |
| Ground fault monitoring |
Yes |
| Integrated AFCI |
Yes (1) |
| Protection class / Over voltage category |
I / II (PV and BAT), III (MAINS and BACKUP and GEN) |
| General Data |
| Dimensions (W × H × D) |
406 × 560 × 205 mm |
| Weight |
24 kg |
| Topology |
High frequency isolation (for battery) |
| Operating ambient temperature range |
-40 ~ +60°C |
| Ingress protection |
IP66 |
| Cooling concept |
Natural cooling |
| Max. operation altitude |
4000 m |
| Grid connection standard |
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
| Safety / EMC standard |
IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
| Features |
| DC connection |
MC4 plug (PV port) / Terminal Block (BAT port) |
| AC connection |
Terminal Block |
| Display |
LED indicator & Bluetooth + APP |
| Communication |
RS485, CAN, Optional: Wi-Fi, GPRS, LAN |
