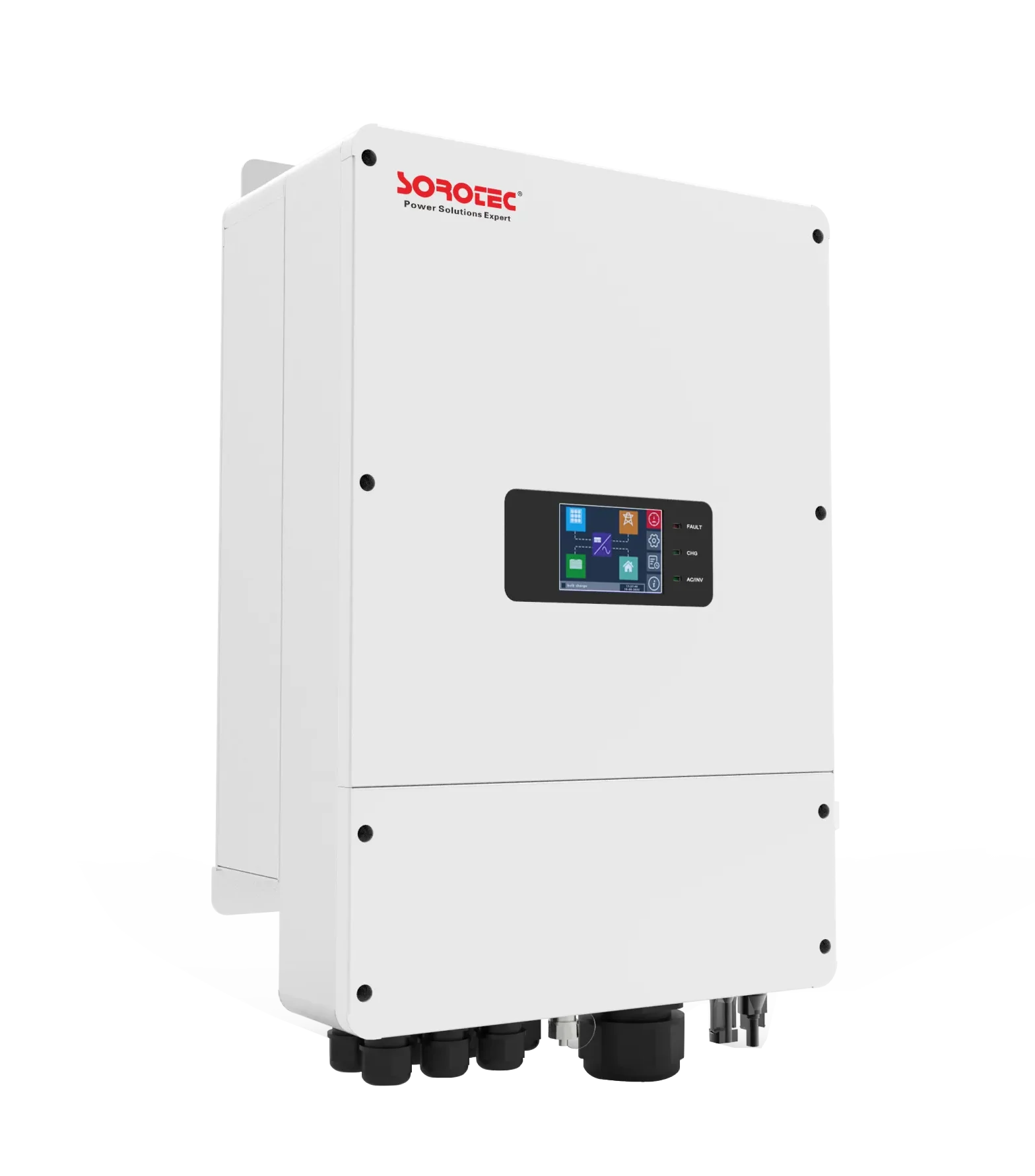

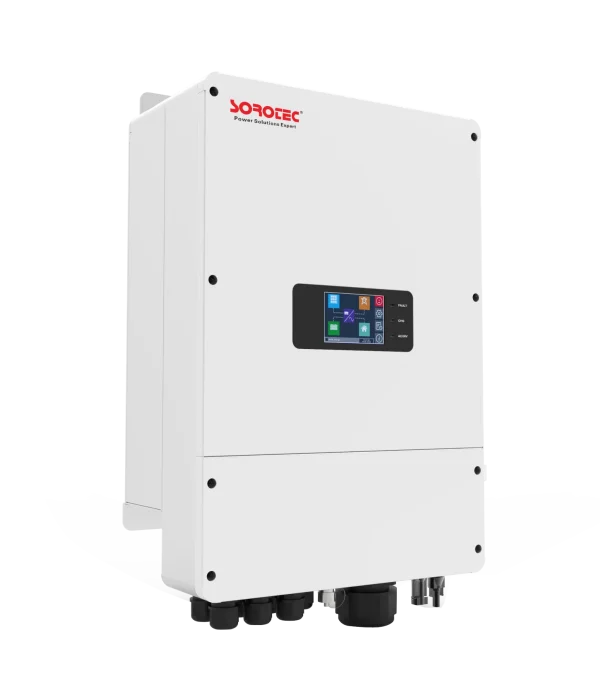

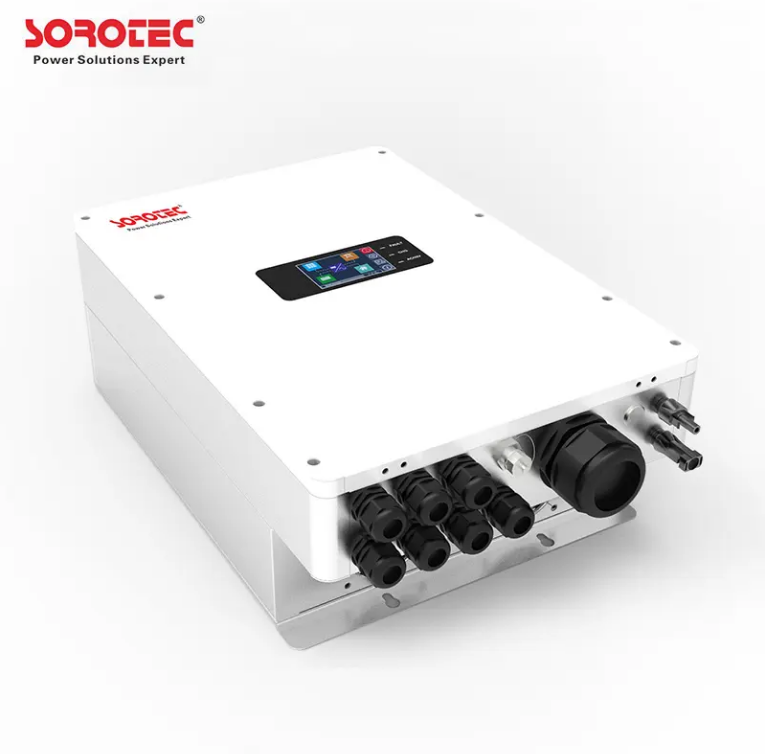

| Technical Specification | REVO HES series | |
| Rated Power | 6000VA/6000W | 8000VA/8000W |
| PV INPUT | ||
| Max.power(kW) | 7 | 11 |
| Max.DC voltage(V) | 500 | |
| MPPT voltage range(V) | 90~450 | |
| Max.input current(A) | 30 | 20+20 |
| MPPT number/Max.input strings number | 1/1/2001 | 2/1/2001 |
| AC OUTPUT(GRID-TIED) | ||
| Grid voltage/range(V) | 230/90-280(For Personal Computers); 170~280 (For Home Appliances) | |
| Frequency(Hz) | 50/60 | |
| PF | 0.8lagging-0.8leading | |
| THDi | <3% | |
| AC output topology | L+N+PE | |
| BATTERY | ||
| Battery voltage range(V) | 40~63 | |
| Max.charging voltage(V) | 63 | |
| Max.charge/discharge current(A) | 120/140 | 120/190 |
| Battery type | Lithium /Lead-acid | |
| UPS OUTPUT | ||
| Rated power (kw) | 6 | 8 |
| Rated output voltage(V) | 220/230/240 | |
| Rated output current(A) | 27.2/27/25 | 36.3/34.7/33.3 |
| Rated frequency (Hz) | 50/60 | |
| Transfer Time(ms) | <10 | |
| THDu | <10% | |
| Overload capacity | 5s≥110%load; 10s≥101%~110%load | |
