Original price was: 145,000৳ .110,000৳ Current price is: 110,000৳ .

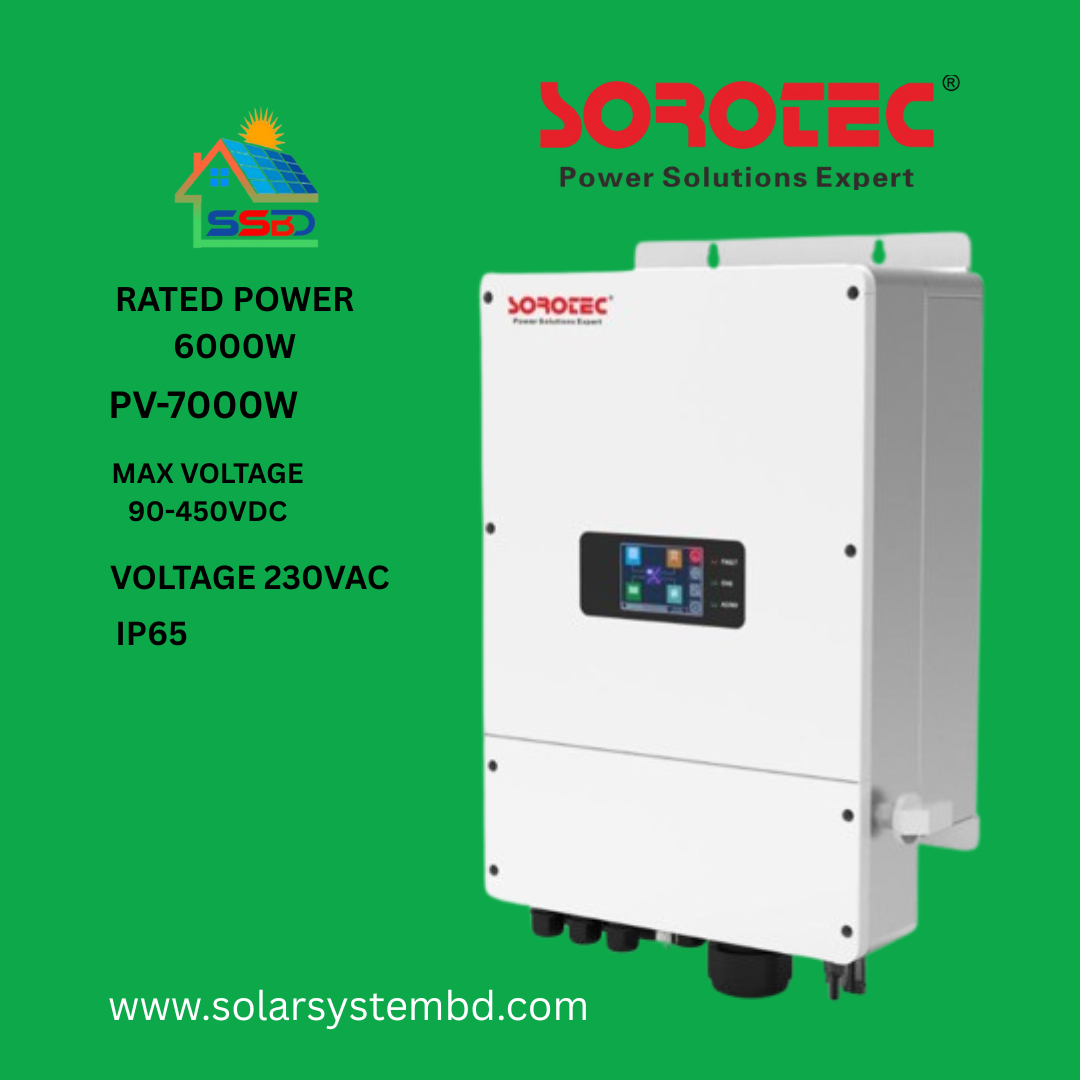

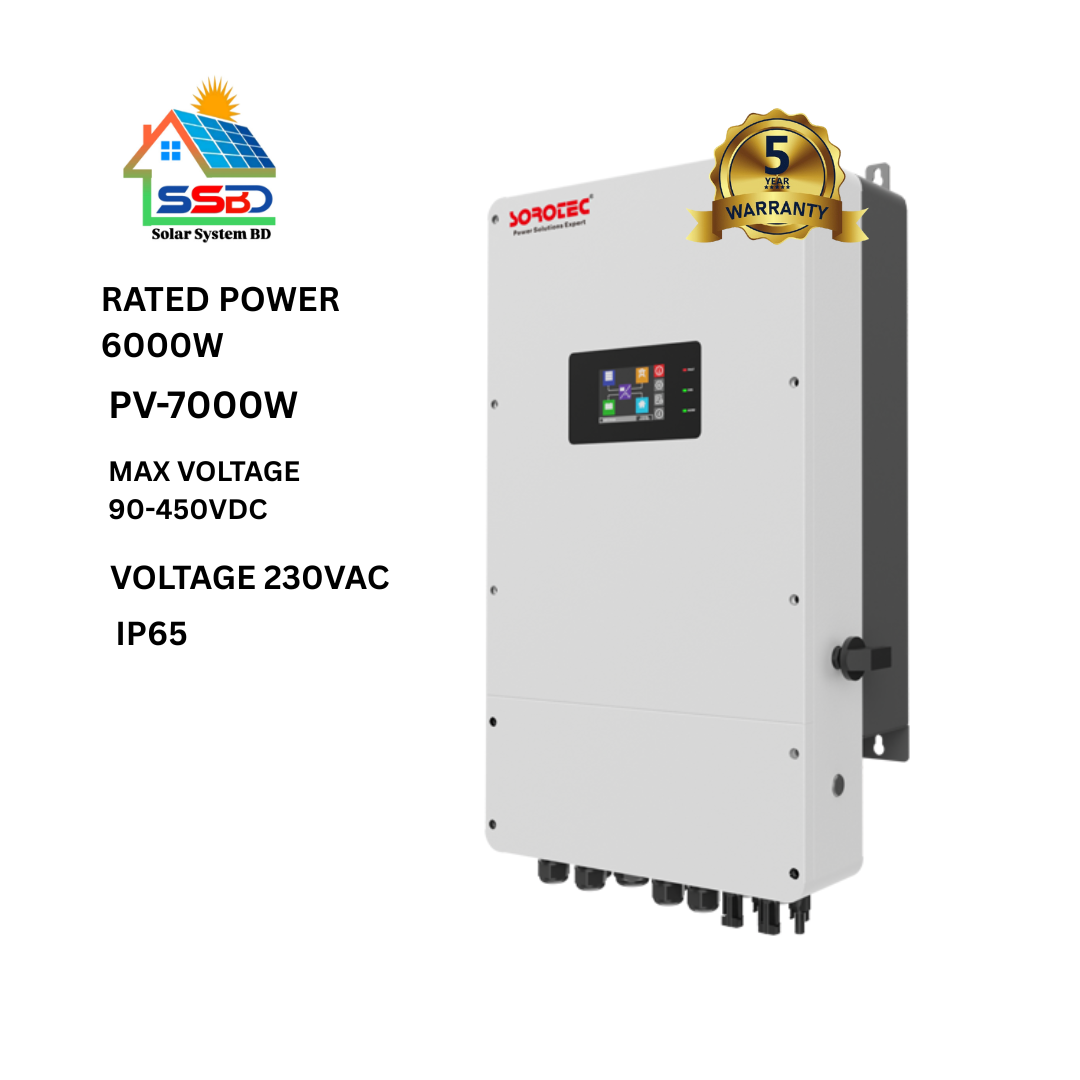

| Technical Specificaaon | REVO HES series | |
| PV INPUT | ||
| Max. power(kW) | 7000 | 9.5 |
| Max. DC voltage (V) | 550 | |
| MPPT voltage range(V) | 90~450 | |
| Max. short circuit current(A) | 30 | 18+18 |
| MPPT number/Max. input strings number | 1/1/2001 | 2/1/2001 |
| AC OUTPUT (GRID-TIED) | ||
| Grid voltage/range(V) | 230/176~270 | |
| Frequency (Hz) | 50/60 | |
| PF | 0.8lagging-0.8leading | |
| THDI | <3% | |
| AC output topology | L+N+PE | |
| BATTERY | ||
| Batery voltage range(V) | 40~58 | |
| Max. charging voltage (V) | 58 | |
| Max. charge/discharge current(A) | 100/140 | 120/190 |
| Batery type | Lithium/Lead-acid | |
| UPS OUTPUT | ||
| Rated power (kw) | 6000 | 8 |
| Rated output voltage(V) | 220/230/240 | |
| Rated output current(A) | 25/27/27.2 | 33.3/34.7/36.3 |
| Rated frequency (Hz) | 50/60 | |
| Transfer Time(ms) | <10 | |
| THDu | <2% | |
| Overload capacity | 110%, 305/120%, 105/150%, 0.02S | |
| PROTECTION& FEATURE | ||
| Anti-island po ttection | Yes | |
| Insulation monioring | Yes | |
| Residual current monitoring | Yes | |
| Arc fault protection | Yes(Optional) | |
| Parallel function | Yes,6 units | |
| Other protection | AC overcurrent, AC overvoltage, Over temperature protection | |
| GENERAL PARAMETER | ||
| Efficiency(Peak) | 0.94 | |
| Degree of protection | Ip65 | |
| Operation empe ture | – 25°C~60°C,>45°C derating | |
| Cooling | smart cooling | |
| Relatve humidity | 0~95%(non-condensing) | |
| Alttude | (>2,000m Derating) | |
| Dimensions W x D x H (mm) | 345197661 | |
| Net Weight(KG) | 22.5 | 32 |
| Isolation anormer | No | |
| Self-consumption(W) | <5 | |
| DISPLAY AND COMMUNICATION | ||
| Display | Touch screen | |

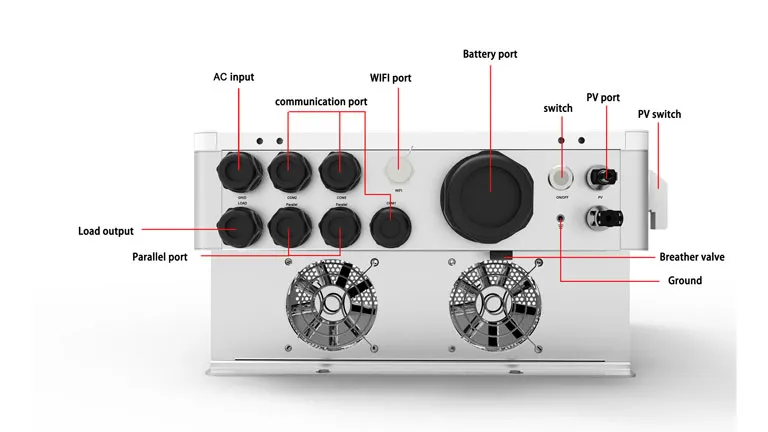

| Interface | Standard: RS232, CAN&RS485, Optional: Blueooth, WiFi, CT | |
| Safety standard | EN/IEC 62109-1,EN/IEC 62109-2 |
