Max 63 batteries in parallel.Scalable from 16.07kWh to 1012.83kWh.
Touchscreen-control.Real-time battery status display.
Single cell with 314Ah.
Floor stand with wheels.
Compatible with major inverter brand
265,000৳

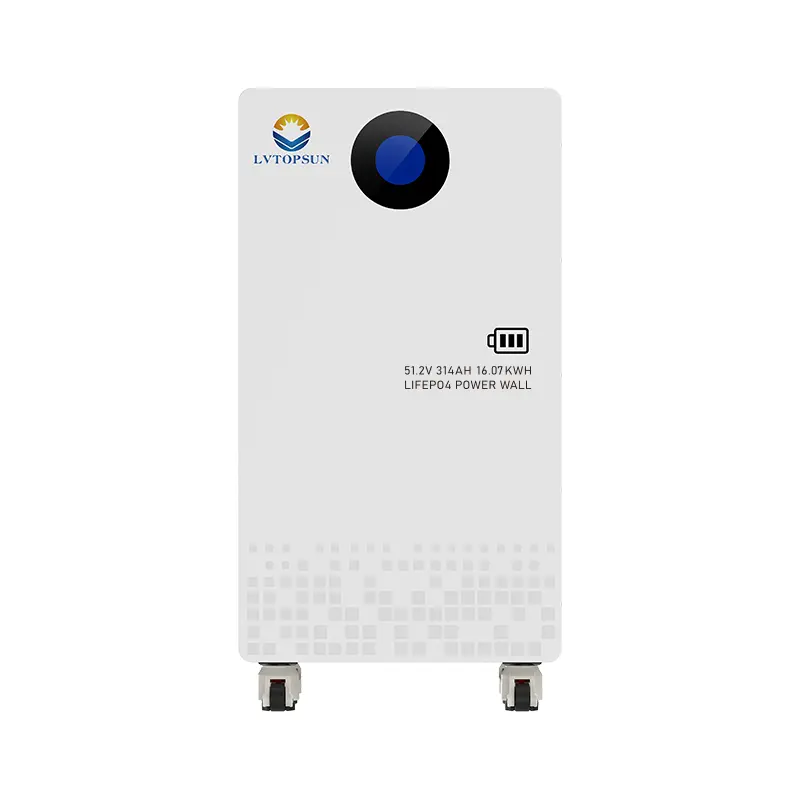

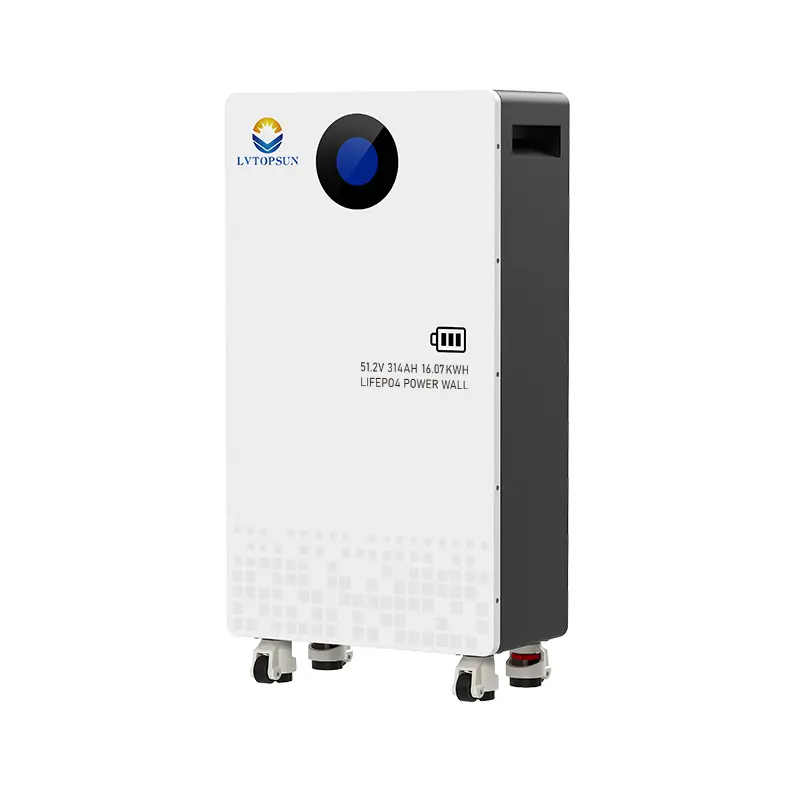

Lvtopsun Lithium battery 51.2 314AH is a high-capacity residential and commercial energy-storage solution designed for solar power systems, off-grid setups, and backup applications. This premium battery uses advanced LiFePO₄ (Lithium Iron Phosphate) cells, ensuring long cycle life, high safety, and excellent temperature performance.
With 314Ah capacity and 16.7kWh usable energy, it delivers reliable power for homes, shops, offices, and hybrid solar systems. The battery supports parallel expansion up to 63 units, allowing scalable energy storage from small households to large commercial loads.
Equipped with an intelligent Battery Management System (BMS), CAN/RS485 communication ports, and LED/LCD monitoring display, it ensures stable performance and seamless integration with modern hybrid inverters. The floor-standing wheel-mounted design makes installation simple and convenient.
This LVTopsun lithium battery is ideal for solar backups, on-grid/off-grid hybrid systems, peak-load shifting, and emergency power solutions.
| Performance | |
| NominalVoltage | 51.2 Vdc |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16076.8 Wh |
| Charge Voltage | 56.16V |
| Maximum Charge Current | 150A |
| Maximum Discharge Current | 200A |
| Connunication Mode | CAN/RS485 |
| Discharge Voltage Range | 45.6 V~56.16V |
| Dimension (WXDXH mm) | 866x450x230 mm |
| Weight (Kg) | 119 kg |
| Working Temperature | Charge 0℃~45℃ Discharge-20℃~45℃ |
| Storage Temperature | Short Term(within 1month)-10℃~45℃ |
| LongTerm(within 1 year)0℃~35℃ | |
| Display | LED indicator+LCD Display |
| Communication | RS232、RS485、CAN |
