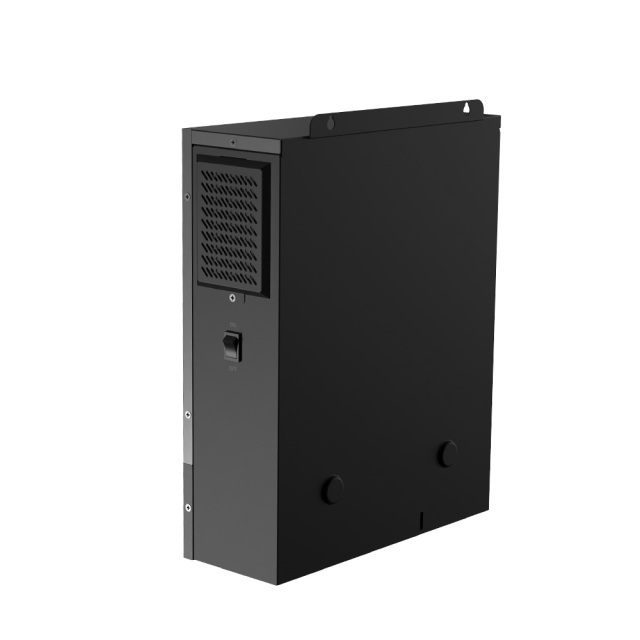

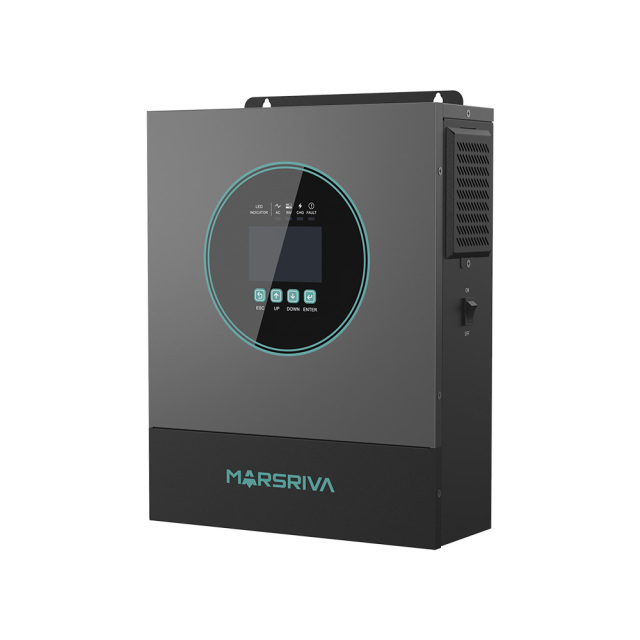

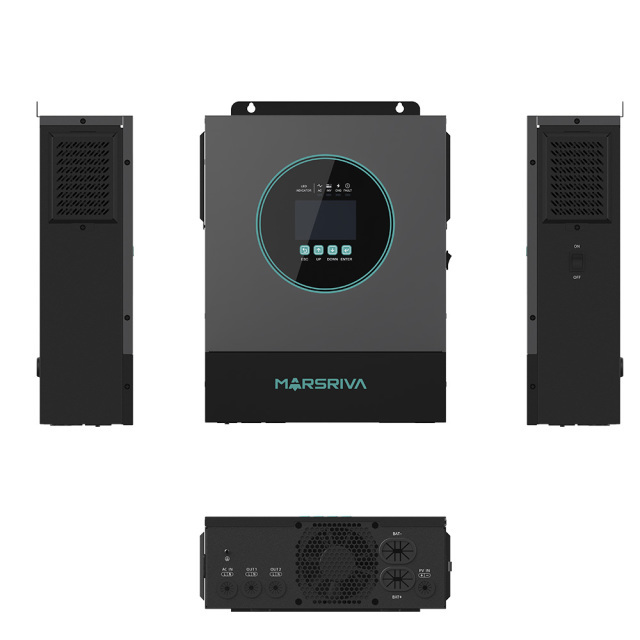

MARSIVA-SPF5KW-LP1-TL20E OFF-GRID SOLAR INVERTER
Original price was: 44,500৳ .42,000৳ Current price is: 42,000৳ .
Rated power 5kW, power factor 1
• MPPT ranges 60V~450V, 500Voc
• High frequency inverter with small size and light weight
• Pure sine wave AC output
• Solar and utility grid can power loads at the same time
• With CAN/RS485 for BMS communication
• With the ability to work without battery
• WIFl module for monitoring
• Dual AC output
• Feed-in to grid function
Description
84
/ 100
SEO Score
MARSIVA-SPF5KW-LP1-TL20E OFF-GRID SOLAR INVERTER
Key Specifications
- Rated Power: 5kW / 5kVA (4kW output when running on battery only)
- Surge Power: 2 times the rated power
- Output Waveform: Pure sine wave
- Nominal Voltage: 208 / 220 / 230 / 240VAC
- Nominal Battery Voltage: 24VDC (Voltage range: 20VDC – 30.5VDC)
- Battery Compatibility: Lead-acid, Lithium, or User-defined (with CAN/RS485 BMS communication) [1]
Solar & AC Charging
- Solar Charger Type: MPPT
- Max. PV Input Power: 9000W
- MPPT Voltage Range: 60 – 450VDC (Min. 80VDC without battery)
- Max. PV Open Circuit Voltage: 500VDC
- Max. PV Input Current: 27A
- Max. Charging Current: 160A (Solar, AC, or Hybrid charging) [1]
Physical & Environment
- Dimensions (W x H x D): 336 × 410 × 110 mm
- Net Weight: 8.4 kg
- Operating Temperature: -10°C to 50°C
- Communication: BMS (RS485/CAN) and Wi-Fi module included [1]
