10.2KW hybrid inverter for residential & small commercial use
Built-in MPPT solar charge controller(s)
Compatible with lithium-ion & lead-acid batteries
Smart energy management & load prioritization
UPS function with automatic switch-over
Overload, short-circuit, surge, and reverse polarity protection
High conversion efficiency & stable AC output
85,000৳

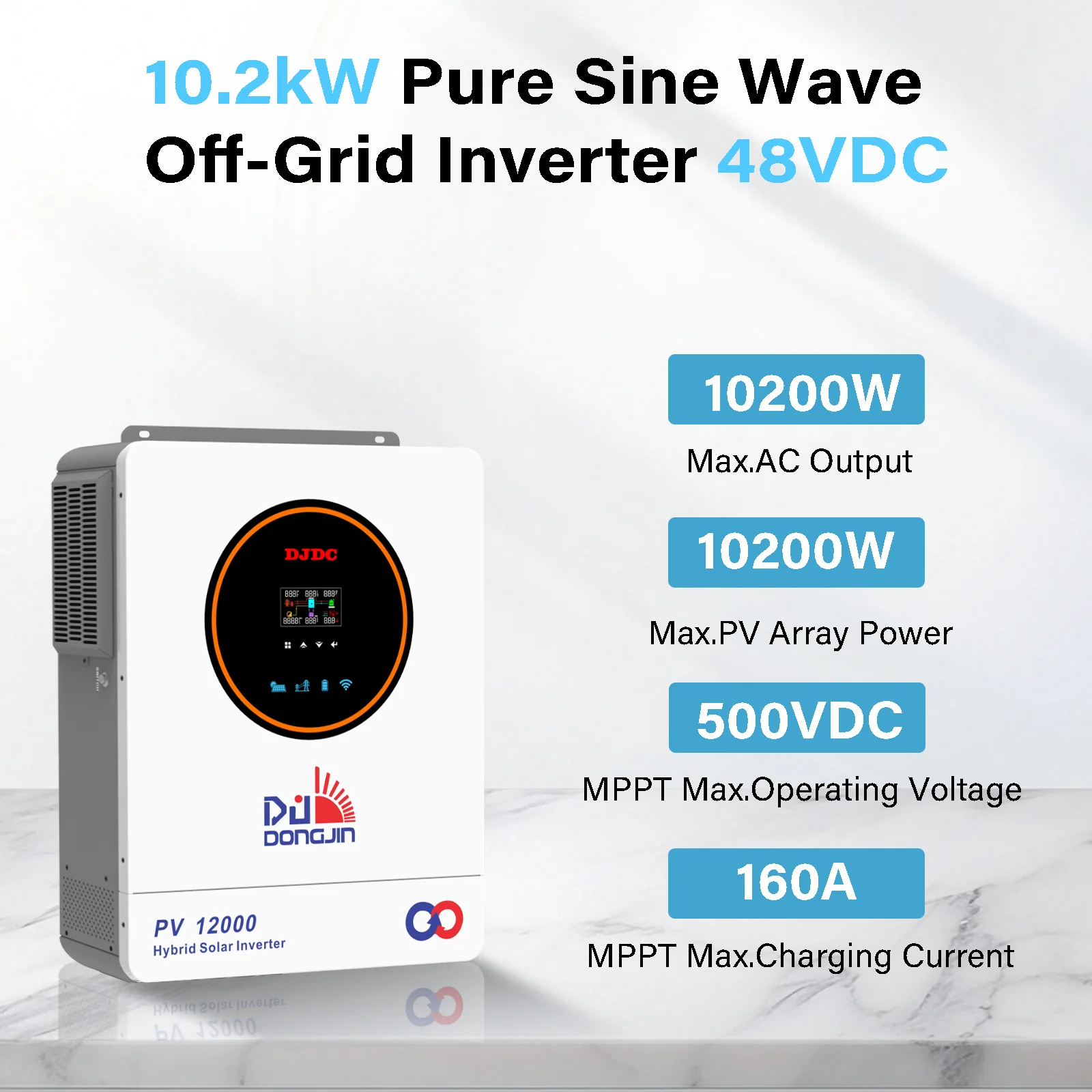

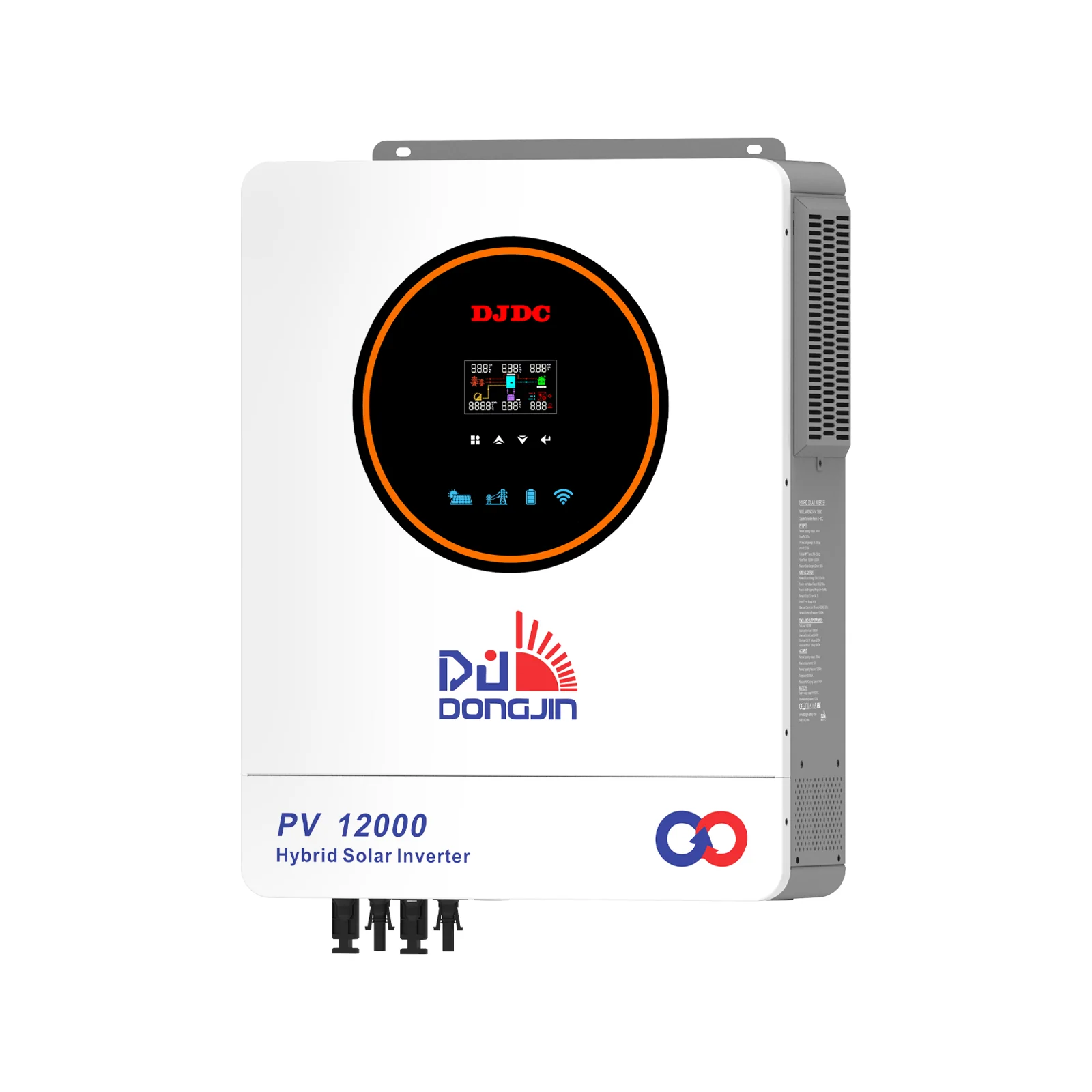

The DJD 10.2KW Solar Hybrid Inverter is a high-performance, hybrid solar inverter designed for residential and small commercial solar systems. It intelligently integrates solar PV, battery storage, and grid power, providing uninterrupted electricity and maximizing energy efficiency.
DJD 10.2KW Solar Hybrid Inverter With built-in MPPT solar charge controllers, automatic switching, and smart energy management, this inverter ensures optimal usage of solar power, prolongs battery life, and provides reliable backup during power outages. Its high conversion efficiency and advanced protections make it ideal for homes, offices, shops, and small industries.
10.2KW hybrid inverter for residential & small commercial use
Built-in MPPT solar charge controller(s)
Compatible with lithium-ion & lead-acid batteries
Smart energy management & load prioritization
UPS function with automatic switch-over
Overload, short-circuit, surge, and reverse polarity protection
High conversion efficiency & stable AC output
Mention the focus keyword 2–4 times per 300–500 words.
Use natural variations (secondary keywords) like:
DJD Solar Hybrid Inverter
10.2KW Hybrid Solar Inverter
Solar + Battery Hybrid Inverter
| Parameter | Specification |
|---|---|
| Model | DJD 10.2KW Solar Hybrid Inverter |
| Rated Power | 10.2 kW |
| Input Type | Solar PV + Battery + Grid |
| Solar PV Input (DC) | 48 V / MPPT Input, up to 600 V DC (typical) |
| Battery Type | LiFePO₄ / Lead-Acid Compatible |
| Battery Voltage | 48 V DC nominal (system-dependent) |
| Battery Capacity Support | Up to 2000 Ah (depending on system) |
| Max Solar Input Current | 100 A (typical, per MPPT) |
| Number of MPPTs | 2–4 (depending on model variant) |
| AC Output Voltage | 220 V / 230 V AC, single or three phase (check model) |
| AC Output Frequency | 50 Hz / 60 Hz auto-detect |
| Peak Efficiency | ≥ 97% |
| Total Harmonic Distortion (THD) | < 3% |
| Battery Charge/Discharge Efficiency | 95–98% |
| Grid / Generator Support | Yes – automatic switch / UPS function |
| Operating Temperature | –10 °C to +50 °C (ambient) |
| Protection Features | Overload, short-circuit, over-voltage, reverse polarity, over-temperature |
| Communication / Monitoring | RS485, CAN, Wi-Fi (optional), LCD Display |
| IP Protection Rating | IP20 / IP21 (indoor installation) |
| Cooling | Forced air / fan cooling |
| Installation | Wall-mounted or floor-standing |
| Warranty | Typically 5–10 years (model dependent) |
